The base datatype class for the decompiler. More...

#include <type.hh>

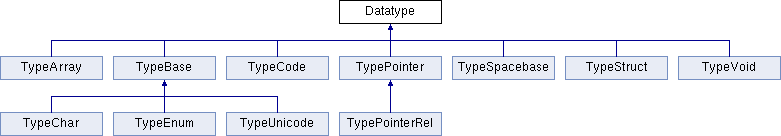

Inheritance diagram for Datatype:

Public Member Functions
	Datatype (const Datatype &op)
	Construct the base data-type copying low-level properties of another.

	Datatype (int4 s, type_metatype m)
	Construct the base data-type providing size and meta-type.

virtual	~Datatype (void)
	Destructor.

bool	isCoreType (void) const
	Is this a core data-type.

bool	isCharPrint (void) const
	Does this print as a 'char'.

bool	isEnumType (void) const
	Is this an enumerated type.

bool	isPowerOfTwo (void) const
	Is this a flag-based enumeration.

bool	isASCII (void) const
	Does this print as an ASCII 'char'.

bool	isUTF16 (void) const
	Does this print as UTF16 'wchar'.

bool	isUTF32 (void) const
	Does this print as UTF32 'wchar'.

bool	isVariableLength (void) const
	Is this a variable length structure.

bool	hasSameVariableBase (const Datatype *ct) const
	Are these the same variable length data-type. More...

bool	isOpaqueString (void) const
	Is this an opaquely encoded string.

bool	isPointerRel (void) const
	Is this a TypePointerRel.

bool	isFormalPointerRel (void) const
	Is this a non-ephemeral TypePointerRel.

bool	hasStripped (void) const
	Return true if this has a stripped form.

bool	isIncomplete (void) const
	Is this an incompletely defined data-type.

uint4	getInheritable (void) const
	Get properties pointers inherit.

type_metatype	getMetatype (void) const
	Get the type meta-type.

sub_metatype	getSubMeta (void) const
	Get the sub-metatype.

uint8	getId (void) const
	Get the type id.

int4	getSize (void) const
	Get the type size.

const string &	getName (void) const
	Get the type name.

Datatype *	getTypedef (void) const
	Get the data-type immediately typedefed by this (or null)

virtual void	printRaw (ostream &s) const
	Print a description of the type to stream. More...

virtual Datatype *	getSubType (uintb off, uintb *newoff) const
	Recover component data-type one-level down. More...

virtual Datatype *	nearestArrayedComponentForward (uintb off, uintb newoff, int4 elSize) const

virtual Datatype *	nearestArrayedComponentBackward (uintb off, uintb newoff, int4 elSize) const

virtual int4	numDepend (void) const
	Return number of component sub-types. More...

virtual Datatype *	getDepend (int4 index) const
	Return the i-th component sub-type. More...

virtual void	printNameBase (ostream &s) const
	Print name as short prefix. More...

virtual int4	compare (const Datatype &op, int4 level) const
	Order types for propagation. More...

virtual int4	compareDependency (const Datatype &op) const
	Compare for storage in tree structure. More...

virtual void	saveXml (ostream &s) const
	Serialize the data-type to XML. More...

virtual bool	isPtrsubMatching (uintb off) const
	Is this data-type suitable as input to a CPUI_PTRSUB op. More...

virtual Datatype *	getStripped (void) const
	Get a stripped version of this for formal use in formal declarations. More...

int4	typeOrder (const Datatype &op) const
	Order this with -op- datatype.

int4	typeOrderBool (const Datatype &op) const
	Order this with -op-, treating bool data-type as special. More...

void	saveXmlRef (ostream &s) const
	Write an XML reference of this to stream. More...

Protected Types
enum	{ coretype = 1 , chartype = 2 , enumtype = 4 , poweroftwo = 8 , utf16 = 16 , utf32 = 32 , opaque_string = 64 , variable_length = 128 , has_stripped = 0x100 , is_ptrrel = 0x200 , type_incomplete = 0x400 }
	Boolean properties of datatypes. More...

Protected Member Functions
void	restoreXmlBasic (const Element *el)
	Recover basic data-type properties. More...

void	saveXmlBasic (type_metatype meta, ostream &s) const
	Save basic data-type properties. More...

void	saveXmlTypedef (ostream &s) const
	Write this as a typedef tag to stream. More...

void	markComplete (void)
	Mark this data-type as completely defined.

virtual Datatype *	clone (void) const =0
	Clone the data-type. More...

Static Protected Member Functions
static uint8	hashName (const string &nm)
	Produce a data-type id by hashing the type name. More...

static uint8	hashSize (uint8 id, int4 size)
	Reversibly hash size into id. More...

Protected Attributes
int4	size
	Size (of variable holding a value of this type)

string	name
	Name of type.

type_metatype	metatype
	Meta-type - type disregarding size.

sub_metatype	submeta
	Sub-type of of the meta-type, for comparisons.

uint4	flags
	Boolean properties of the type.

uint8	id
	A unique id for the type (or 0 if an id is not assigned)

Datatype *	typedefImm
	The immediate data-type being typedefed by this.

Static Protected Attributes
static sub_metatype	base2sub [13]

Friends
class	TypeFactory

struct	DatatypeCompare

Detailed Description

The base datatype class for the decompiler.

Used for symbols, function prototypes, type propagation etc.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

protected

Boolean properties of datatypes.

Enumerator
coretype	This is a basic type which will never be redefined.
chartype	ASCII character data.
enumtype	An enumeration type (as well as an integer)
poweroftwo	An enumeration type where all values are of 2^^n form.
utf16	16-bit wide chars in unicode UTF16
utf32	32-bit wide chars in unicode UTF32
opaque_string	Structure that should be treated as a string.
variable_length	May be other structures with same name different lengths.
has_stripped	Datatype has a stripped form for formal declarations.
is_ptrrel	Datatype is a TypePointerRel.
type_incomplete	Set if this (recursive) data-type has not been fully defined yet.

Member Function Documentation

◆ clone()

virtual Datatype * Datatype::clone ( void ) const

protectedpure virtual

Clone the data-type.

Implemented in TypeBase, TypeChar, TypeUnicode, TypeVoid, TypePointer, TypeArray, TypeEnum, TypeStruct, TypePointerRel, TypeCode, and TypeSpacebase.

Referenced by TypeFactory::findAdd(), and TypeFactory::getTypedef().

◆ compare()

int4 Datatype::compare	(	const Datatype &	op,
		int4	level
	)		const

virtual

Order types for propagation.

Order this with another data-type, in a way suitable for the type propagation algorithm. Bigger types come earlier. More specific types come earlier.

Parameters

op	is the data-type to compare with this
level	is maximum level to descend when recursively comparing

Returns: negative, 0, positive depending on ordering of types

Reimplemented in TypePointer, TypeArray, TypeEnum, TypeStruct, TypeCode, and TypeSpacebase.

References size, and submeta.

Referenced by TypePointer::compare(), TypeArray::compare(), TypeCode::compare(), typeOrder(), and typeOrderBool().

◆ compareDependency()

int4 Datatype::compareDependency ( const Datatype & op ) const

virtual

Compare for storage in tree structure.

Sort data-types for the main TypeFactory container. The sort needs to be based on the data-type structure so that an example data-type, constructed outside the factory, can be used to find the equivalent object inside the factory. This means the comparison should not examine the data-type id. In practice, the comparison only needs to go down one level in the component structure before just comparing component pointers.

Parameters

op	is the data-type to compare with this

Returns: negative, 0, positive depending on ordering of types

Reimplemented in TypePointer, TypeArray, TypeEnum, TypeStruct, TypePointerRel, TypeCode, and TypeSpacebase.

References size, and submeta.

Referenced by TypeCode::compareDependency(), TypeSpacebase::compareDependency(), TypeFactory::findAdd(), DatatypeCompare::operator()(), TypeFactory::restoreCode(), and TypeFactory::restoreStruct().

◆ getDepend()

virtual Datatype * Datatype::getDepend ( int4 index ) const

inlinevirtual

Return the i-th component sub-type.

Reimplemented in TypePointer, TypeArray, and TypeStruct.

Referenced by TypeFactory::orderRecurse().

◆ getStripped()

Datatype * Datatype::getStripped ( void ) const

virtual

Get a stripped version of this for formal use in formal declarations.

Some data-types are ephemeral, and, in the final decompiler output, get replaced with a formal version that is a stripped down version of the original. This method returns this stripped down version, if it exists, or null otherwise. A non-null return should correspond with hasStripped returning true.

Returns: the stripped version or null

Reimplemented in TypePointerRel.

Referenced by TypeFactory::getTypePointer(), TypeFactory::getTypePointerStripArray(), and HighVariable::updateType().

◆ getSubType()

Datatype * Datatype::getSubType	(	uintb	off,
		uintb *	newoff
	)		const

virtual

Recover component data-type one-level down.

Given an offset into this data-type, return the component data-type at that offset. Also, pass back a "renormalized" offset suitable for recursize getSubType() calls: i.e. if the original offset hits the exact start of the sub-type, 0 is passed back. If there is no valid component data-type at the offset, return NULL and pass back the original offset

Parameters

off	is the offset into this data-type
newoff	is a pointer to the passed-back offset

Returns: a pointer to the component data-type or NULL

Reimplemented in TypeArray, TypeStruct, TypeCode, and TypeSpacebase.

Referenced by RuleStructOffset0::applyOp(), TypePointerRel::getPtrToFromParent(), SymbolEntry::getSizedType(), AddTreeState::hasMatchingSubType(), TypePointer::isPtrsubMatching(), ActionInferTypes::propagateRef(), RangeHint::reconcile(), and Funcdata::syncVarnodesWithSymbols().

◆ hashName()

uint8 Datatype::hashName ( const string & nm )

staticprotected

Produce a data-type id by hashing the type name.

If a type id is explicitly provided for a data-type, this routine is used to produce an id based on a hash of the name. IDs produced this way will have their sign-bit set to distinguish it from other IDs.

Parameters

nm	is the type name to be hashed

Referenced by TypeFactory::getBase(), TypeFactory::getTypeChar(), TypeFactory::getTypeCode(), TypeFactory::getTypedef(), TypeFactory::getTypeEnum(), TypeFactory::getTypePointer(), TypeFactory::getTypePointerRel(), TypeFactory::getTypeStruct(), TypeFactory::getTypeUnicode(), TypeFactory::getTypeVoid(), restoreXmlBasic(), TypeFactory::restoreXmlType(), and TypeFactory::setName().

◆ hashSize()

uint8 Datatype::hashSize	(	uint8	id,
		int4	size
	)

staticprotected

Reversibly hash size into id.

This allows IDs for variable length structures to be uniquefied based on size. A base ID is given and a size of the specific instance. A unique ID is returned. The hashing is reversible by feeding the output ID back into this function with the same size.

Parameters

id	is the given ID to (de)uniquify
size	is the instance size of the structure

Returns: the (de)uniquified id

References id, and size.

Referenced by TypeFactory::findById(), hasSameVariableBase(), TypeFactory::restoreTypedef(), restoreXmlBasic(), saveXmlBasic(), and saveXmlRef().

◆ hasSameVariableBase()

bool Datatype::hasSameVariableBase ( const Datatype * ct ) const

Are these the same variable length data-type.

If this and the other given data-type are both variable length and come from the the same base data-type, return true.

Parameters

ct	is the other given data-type to compare with this

Returns: true if they are the same variable length data-type.

References hashSize(), id, isVariableLength(), and size.

Referenced by CastStrategyC::castStandard().

◆ isPtrsubMatching()

bool Datatype::isPtrsubMatching ( uintb off ) const

virtual

Is this data-type suitable as input to a CPUI_PTRSUB op.

A CPUI_PTRSUB must act on a pointer data-type where the given offset addresses a component. Perform this check.

Parameters

off	is the given offset

Returns: true if this is a suitable PTRSUB data-type

Reimplemented in TypePointer, and TypePointerRel.

Referenced by ActionSetCasts::apply(), and RulePtrsubUndo::applyOp().

◆ nearestArrayedComponentBackward()

Datatype * Datatype::nearestArrayedComponentBackward	(	uintb	off,
		uintb *	newoff,
		int4 *	elSize
	)		const

virtual

Find the first component data-type before the given offset that is (or contains) an array, and pass back the difference between the component's start and the given offset. Return the component data-type or null if no array is found.

Parameters

off	is the given offset into this data-type
newoff	is used to pass back the offset difference
elSize	is used to pass back the array element size

Returns: the component data-type or null

Reimplemented in TypeStruct, and TypeSpacebase.

Referenced by AddTreeState::hasMatchingSubType(), and TypeSpacebase::nearestArrayedComponentBackward().

◆ nearestArrayedComponentForward()

Datatype * Datatype::nearestArrayedComponentForward	(	uintb	off,
		uintb *	newoff,
		int4 *	elSize
	)		const

virtual

Find the first component data-type after the given offset that is (or contains) an array, and pass back the difference between the component's start and the given offset. Return the component data-type or null if no array is found.

Parameters

off	is the given offset into this data-type
newoff	is used to pass back the offset difference
elSize	is used to pass back the array element size

Returns: the component data-type or null

Reimplemented in TypeStruct, and TypeSpacebase.

Referenced by AddTreeState::hasMatchingSubType(), and TypeSpacebase::nearestArrayedComponentForward().

◆ numDepend()

virtual int4 Datatype::numDepend ( void ) const

inlinevirtual

Return number of component sub-types.

Reimplemented in TypePointer, TypeArray, and TypeStruct.

Referenced by TypeFactory::orderRecurse().

◆ printNameBase()

virtual void Datatype::printNameBase ( ostream & s ) const

inlinevirtual

Print name as short prefix.

Reimplemented in TypePointer, and TypeArray.

References name.

Referenced by ScopeInternal::buildVariableName(), ScopeLocal::buildVariableName(), TypePointer::printNameBase(), and TypeArray::printNameBase().

◆ printRaw()

void Datatype::printRaw ( ostream & s ) const

virtual

Print a description of the type to stream.

Print a raw description of the type to stream. Intended for debugging. Not intended to produce parsable C.

Parameters

s	is the output stream

Reimplemented in TypePointer, TypeArray, TypePointerRel, and TypeCode.

References name, and size.

Referenced by MapState::addRange(), TypeFactory::insert(), SymbolEntry::printEntry(), HighVariable::printInfo(), Varnode::printInfo(), FuncProto::printRaw(), TypePointer::printRaw(), TypeArray::printRaw(), and TypePointerRel::printRaw().

◆ restoreXmlBasic()

void Datatype::restoreXmlBasic ( const Element * el )

protected

Recover basic data-type properties.

Restore the basic properties (name,size,id) of a data-type from an XML element Properties are read from the attributes of the element

Parameters

el	is the XML element

References base2sub, coretype, flags, Element::getAttributeName(), Element::getAttributeValue(), Element::getNumAttributes(), hashName(), hashSize(), id, isVariableLength(), metatype, name, opaque_string, size, string2metatype(), submeta, variable_length, and xml_readbool().

Referenced by TypeFactory::restoreStruct(), TypeCode::restoreStub(), TypeChar::restoreXml(), TypeUnicode::restoreXml(), TypeFactory::restoreXmlTypeNoRef(), and TypeFactory::restoreXmlTypeWithCodeFlags().

◆ saveXml()

void Datatype::saveXml ( ostream & s ) const

virtual

Serialize the data-type to XML.

Write out a formal description of the data-type as an XML <type> tag. For composite data-types, the description goes down one level, describing the component types only by reference.

Parameters

s	is the stream to write to

Reimplemented in TypeChar, TypeUnicode, TypeVoid, TypePointer, TypeArray, TypeEnum, TypeStruct, TypePointerRel, TypeCode, and TypeSpacebase.

References metatype, and saveXmlBasic().

Referenced by CPoolRecord::saveXml(), ProtoStoreInternal::saveXml(), FuncProto::saveXml(), TypePointerRel::saveXml(), TypeFactory::saveXmlCoreTypes(), and saveXmlRef().

◆ saveXmlBasic()

void Datatype::saveXmlBasic	(	type_metatype	meta,
		ostream &	s
	)		const

protected

Save basic data-type properties.

Write out basic data-type properties (name,size,id) as XML attributes. This routine presumes the initial tag is already written to the stream.

Parameters

meta	is the metatype to put in the XML
s	is the stream to write to

References a_v(), a_v_b(), a_v_i(), coretype, flags, hashSize(), id, isVariableLength(), metatype2string(), name, opaque_string, and size.

Referenced by saveXml(), TypeChar::saveXml(), TypeUnicode::saveXml(), TypePointer::saveXml(), TypeArray::saveXml(), TypePointerRel::saveXml(), TypeCode::saveXml(), and TypeSpacebase::saveXml().

◆ saveXmlRef()

void Datatype::saveXmlRef ( ostream & s ) const

Write an XML reference of this to stream.

Write a simple reference to this data-type as an XML <typeref> tag, which only encodes the name and id.

Parameters

s	is the stream to write to

References a_v(), a_v_i(), a_v_u(), hashSize(), isVariableLength(), metatype, name, saveXml(), size, and TYPE_VOID.

Referenced by TypePointerRel::saveXml(), Symbol::saveXmlBody(), and saveXmlTypedef().

◆ saveXmlTypedef()

void Datatype::saveXmlTypedef ( ostream & s ) const

protected

Write this as a typedef tag to stream.

Called only if the typedefImm field is non-null. Write the data-type to the stream as a simple <typedef> tag including only the names and ids of this and the data-type it typedefs.

Parameters

s	is the output stream

References a_v(), a_v_u(), name, saveXmlRef(), and typedefImm.

Referenced by TypeChar::saveXml(), TypeUnicode::saveXml(), TypeVoid::saveXml(), TypePointer::saveXml(), TypeArray::saveXml(), TypeCode::saveXml(), and TypeSpacebase::saveXml().

◆ typeOrderBool()

int4 Datatype::typeOrderBool ( const Datatype & op ) const

inline

Order this with -op-, treating bool data-type as special.

Order data-types, with special handling of the bool data-type. Data-types are compared using the normal ordering, but bool is ordered after all other data-types. A return value of 0 indicates the data-types are the same, -1 indicates that this is prefered (ordered earlier), and 1 indicates this is ordered later.

Parameters

op	is the other data-type to compare with this

Returns: -1, 0, or 1

References compare(), metatype, and TYPE_BOOL.

Referenced by HighVariable::getTypeRepresentative().

Member Data Documentation

◆ base2sub

sub_metatype Datatype::base2sub

staticprotected

Initial value:

= {
    SUB_STRUCT, SUB_PARTIALSTRUCT, SUB_ARRAY, SUB_PTRREL, SUB_PTR, SUB_FLOAT, SUB_CODE, SUB_BOOL,
    SUB_UINT_PLAIN, SUB_INT_PLAIN, SUB_UNKNOWN, SUB_SPACEBASE, SUB_VOID
}

The base propagation ordering associated with each meta-type. The array elements correspond to the ordering of type_metatype.

Referenced by Datatype(), and restoreXmlBasic().

The documentation for this class was generated from the following files:

type.hh
type.cc

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Member Function Documentation

◆ clone()

◆ compare()

◆ compareDependency()

◆ getDepend()

◆ getStripped()

◆ getSubType()

◆ hashName()

◆ hashSize()

◆ hasSameVariableBase()

◆ isPtrsubMatching()

◆ nearestArrayedComponentBackward()

◆ nearestArrayedComponentForward()

◆ numDepend()

◆ printNameBase()

◆ printRaw()

◆ restoreXmlBasic()

◆ saveXml()

◆ saveXmlBasic()

◆ saveXmlRef()

◆ saveXmlTypedef()

◆ typeOrderBool()

Member Data Documentation

◆ base2sub
